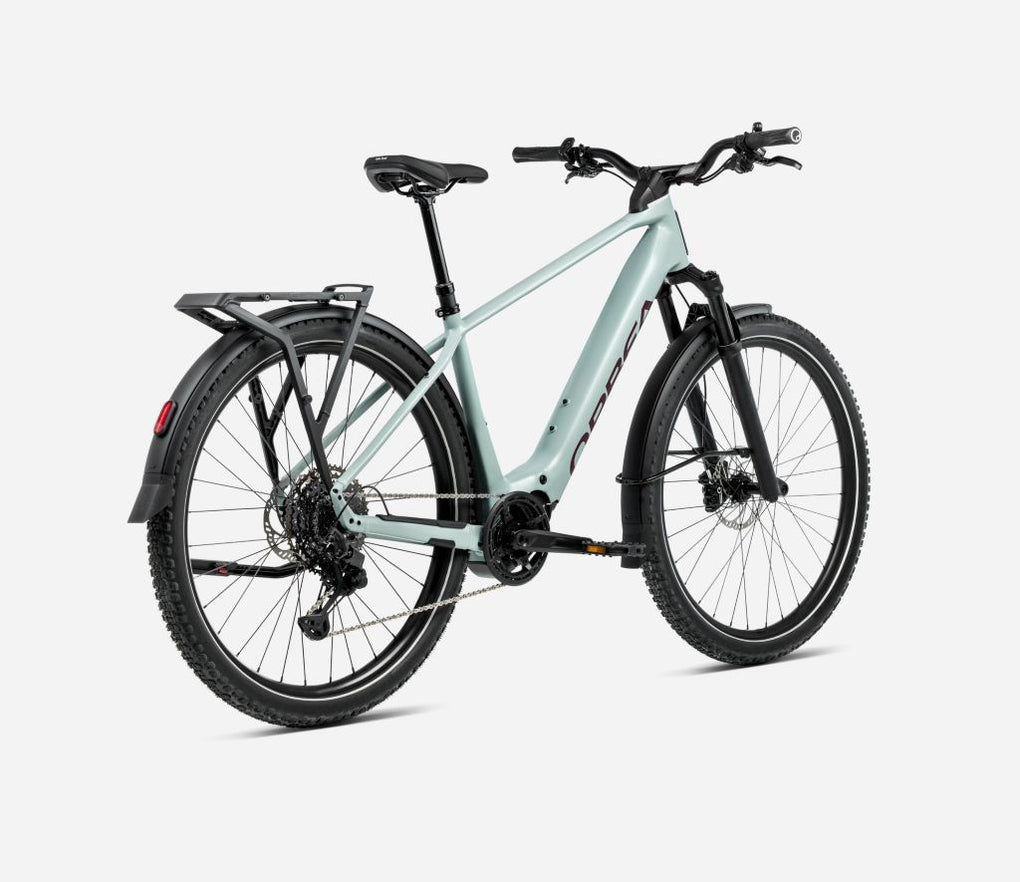

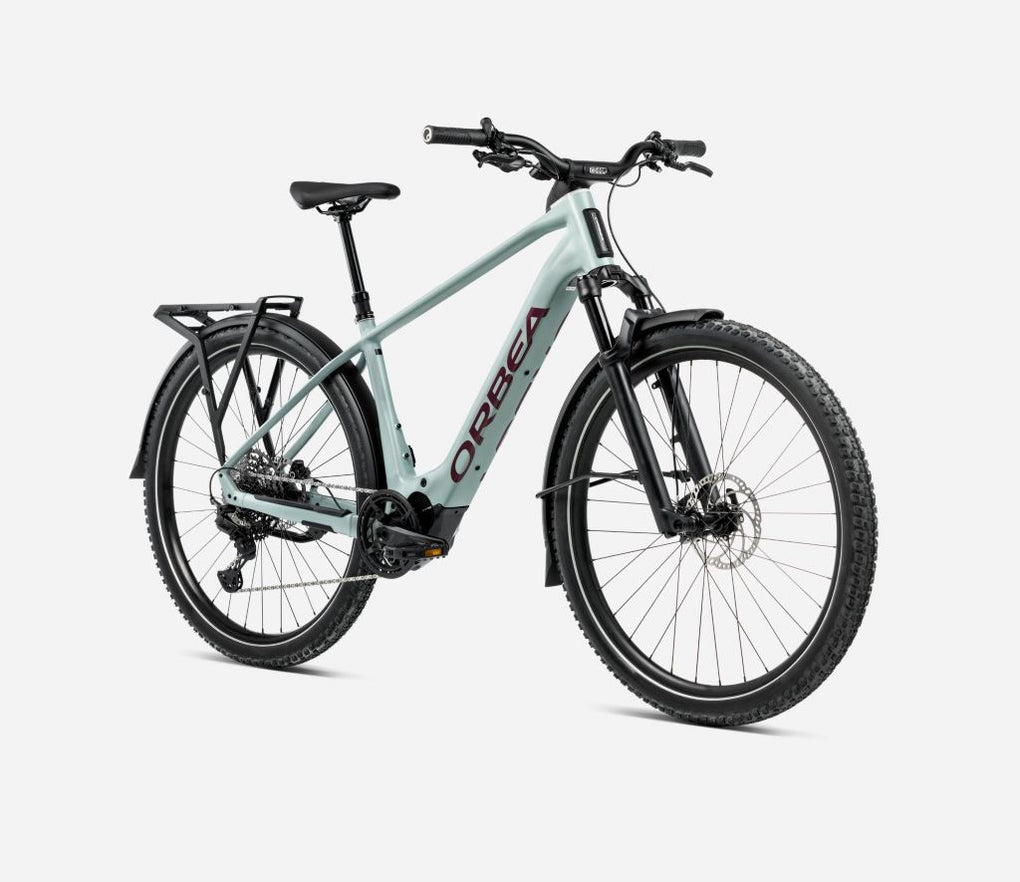

Orbea - Kemen ADV 30

ADVENTURE GUARANTEED

Kemen Adv is equally at home cutting through the city or exploring the hills. The powerful Shimano EP motor and 540 Wh battery open up a world of possibilities, and our wide range of accessories make it simple to configure Kemen for whatever your day holds.

STANDARD COMPONENTS

• Frame: Orbea Kemen Top Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible
• Fork: SR Suntour XCR34 100mm Coil Q15x110
• Steerer tube: FSA 1-1/2" Integrated Aluminium Cup
• Battery: Orbea Internal 540Wh (Optional 252 Wh Range Extender)
• Motor: Shimano EP600
• Display: N/A
• CHARGER: Orbea 2.Generation eBike Smart charger 42V/2-4A
• Remote: EN600-L
• Chainring: Alloy 40t w/chainguard
• Crank:Shimano Steps EM600
• Shifters: Shimano Cues SL-U4000
• Cassette: Shimano CS-LG300 11-46t 9-Speed
• Rear derailleur: Shimano Cues U4000 GS Shadow
• Chain: KMC eGlide
• Handlebar: Orbea Urban, Integrated Light, Rise 50, Width 760

• Brakes: Shimano MT200 Hydraulic Disc
• Wheels: Alloy, Tubeless, 29", 29c, 32H
• Tyres: Schwalbe Johnny Watts LR, 60-622, Reflective Tape
• Pedals: VP-537 Black
• Front carrier: N/A
• Rear carrier: Orbea RR-02 Alloy, w/MIK HD and MIK Side and Ortlieb QL3.1 system. Max. 30Kg
• Mudguard: Curana Apollo Orbit 70mm
• Front Position Light: Orbea integrated, USB-C charging point
• Front light: Supernova Starstream Pure, Low Beam
• Rear light: Supernova TL3 Z
• Quick stand: Massload rear adjustable
• Seatpost: Alloy, 31.6mm, Setback 0
• Saddle: Selle Royal Vivo Ergo
